Symons Cone Crusher Parts and Characteristics

We specialize in providing a wide range of high-quality replacement parts for Symons series cone crushers. Our inventory includes critical components such as Bowl Liners, Bowls, Outer Eccentric Bushings, Inner Eccentric Bushings, Socket Liners, Countershaft Box Bushings, Lower Step Bearing Plates, Countershafts, Pinions, Gears, Mantles, and Mainshafts.

Precision Bronze Bushings

Eccentric Bushings (Inner/Outer): Manufactured from centrifugally casting high lead bronze (C93800). Ultra-high machining accuracy. Exceptionally long service life.

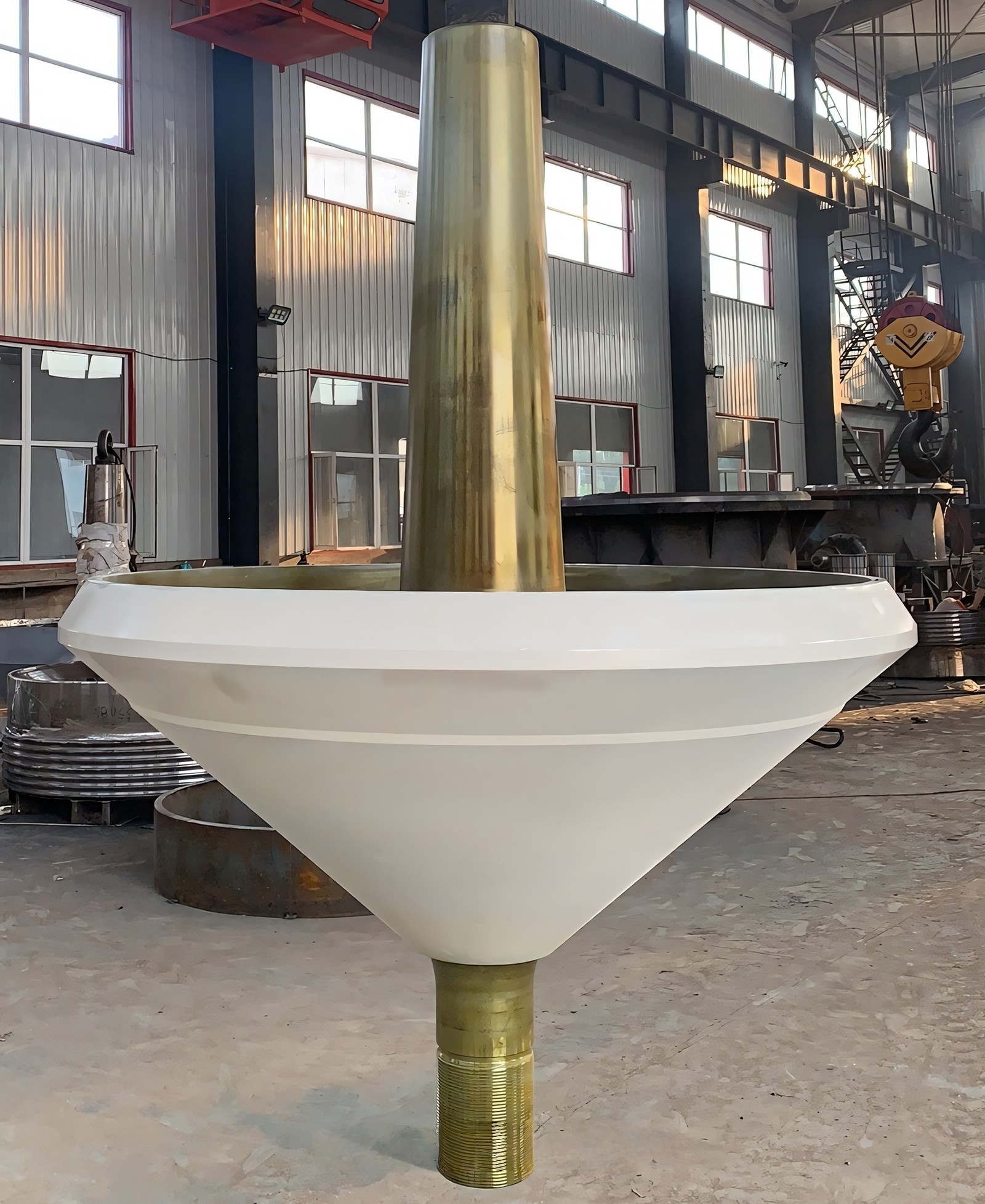

Shaft assembly

The shaft assembly serves as a primary component in crushers, transmitting the rotational motion from the motor to the crushing mechanism. It provides support and stability to the crusher assembly and facilitates the crushing process.

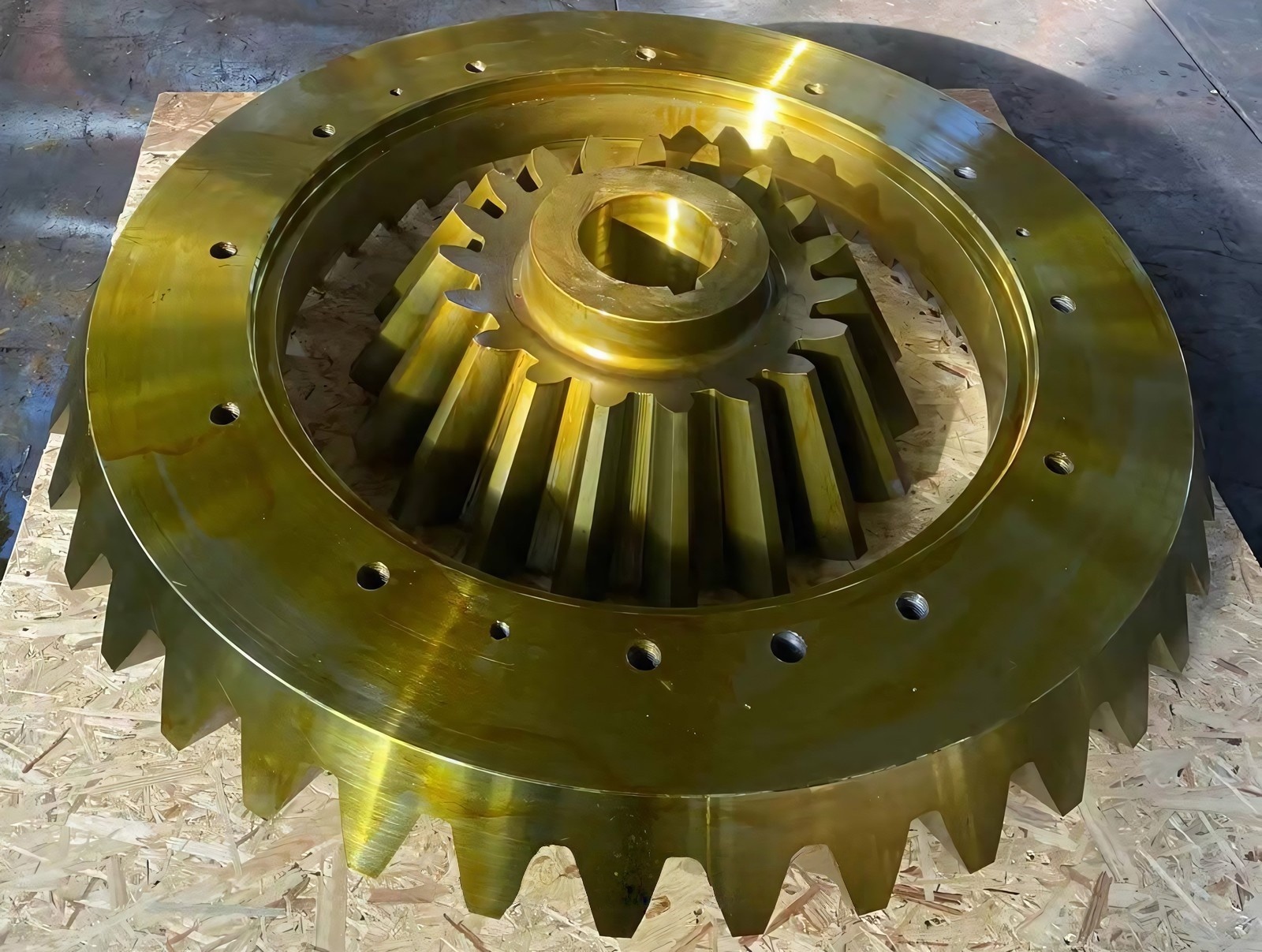

Gear & Pinion Drive System

42CrMo, 20CrMnTi alloy steel gears undergo carburizing and quenching, achieving surface hardness of HRC 58-62.

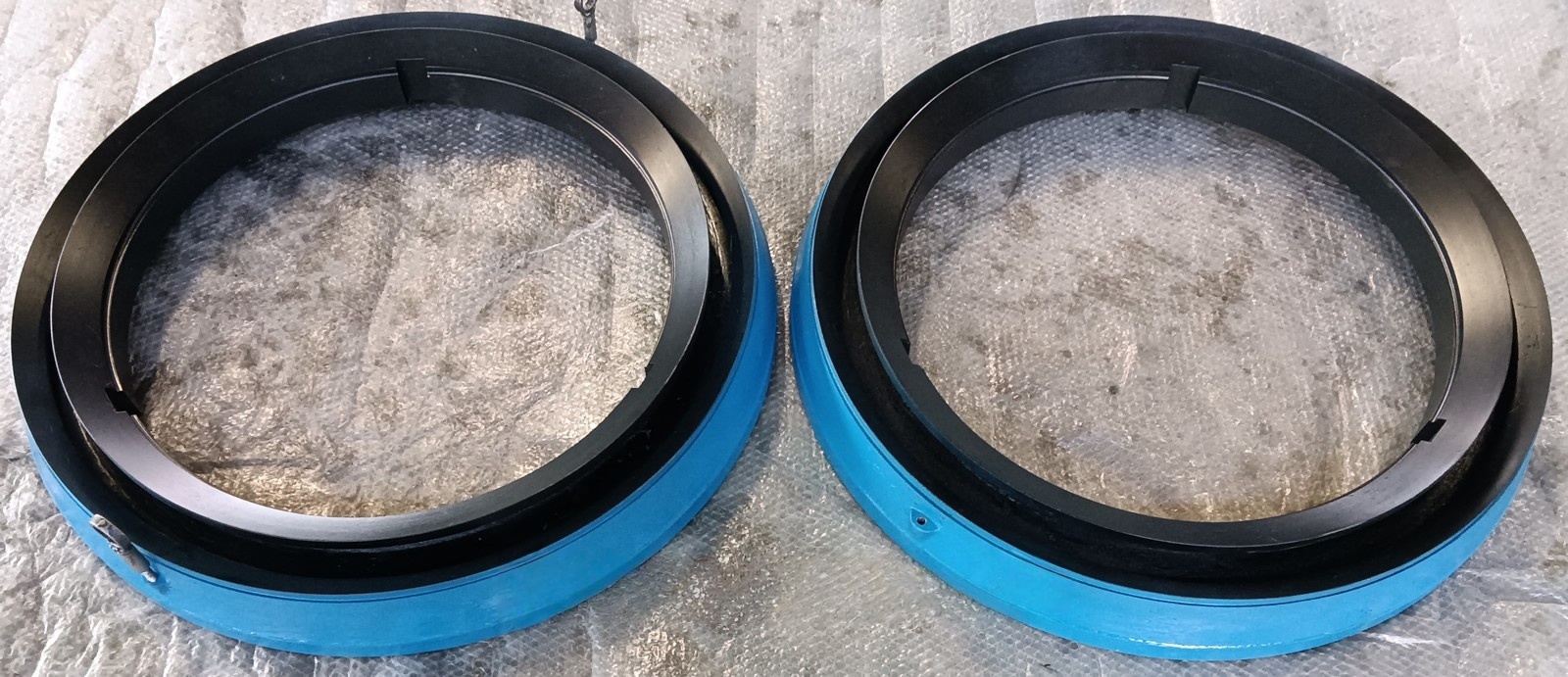

Socket Sealing Ring

Simple installation method, designed to prevent dust ingress into the socket.

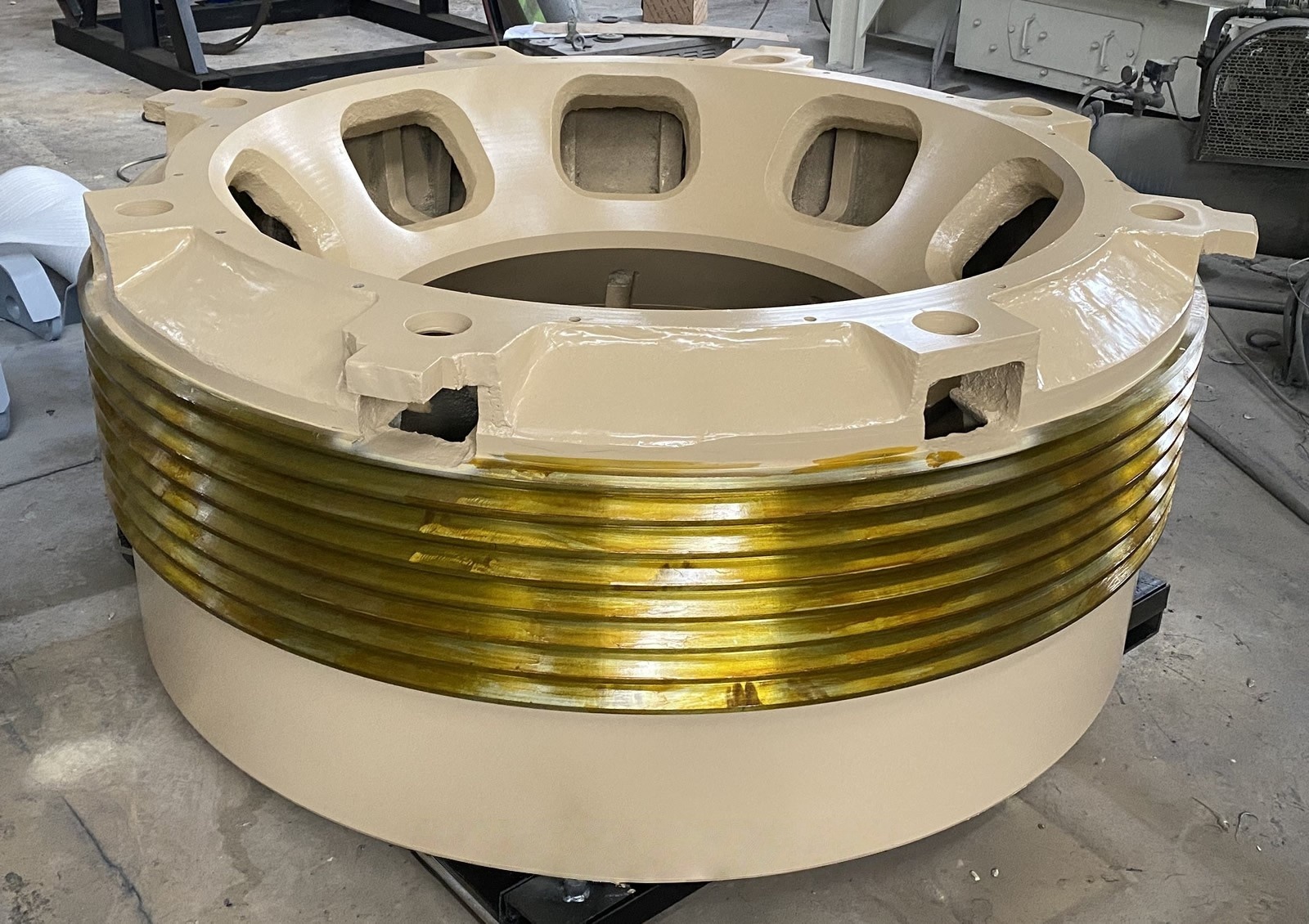

Bowl

Suspension of the bowl liner and support of the feed cone.

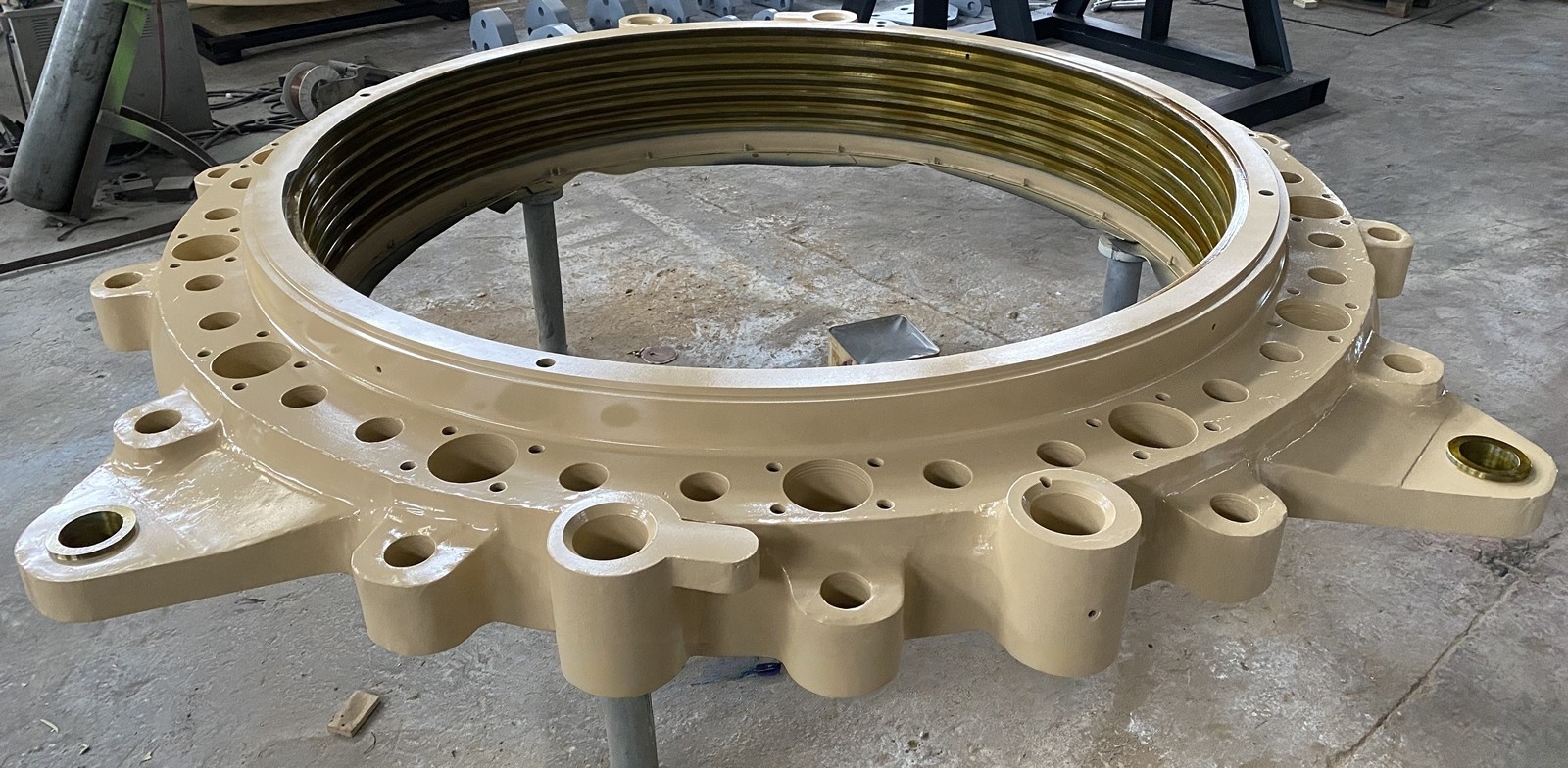

Adjustment ring

Installed on tapered machined surface of crusher main frame, adjustment ring has machined saw thread inside, so that bowl can be raised or reduced. Adjustment ring plays an important role in tramp release work because when there is tramp iron be fed into cone crusher, adjustment ring will be raised under condition that springs under pressure.

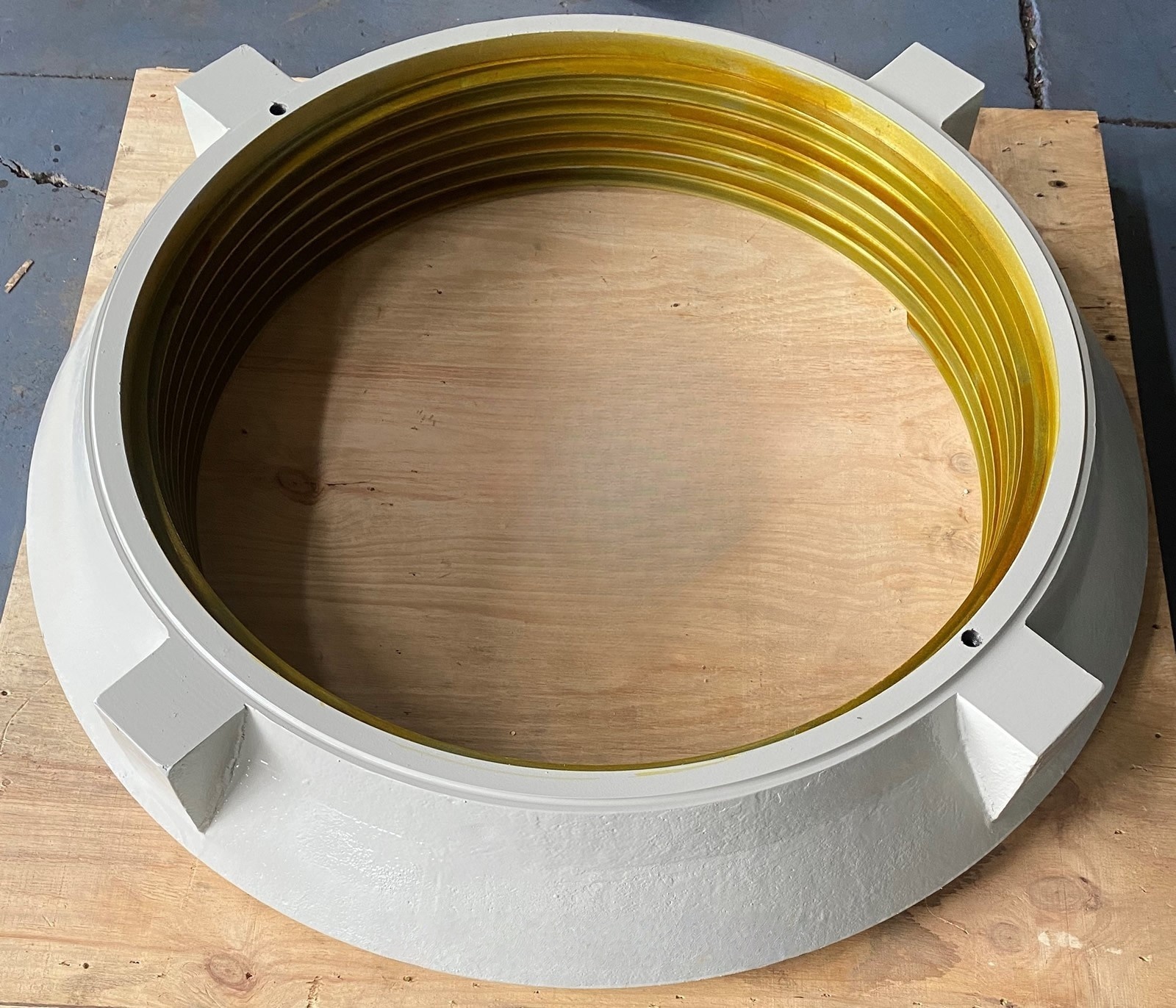

Mantle locking nut

The Mantle locking nut is a specially designed component that helps to secure the crusher's mantle in place. It is made from high-quality materials and is designed to resist wear and corrosion, ensuring that it provides reliable performance over an extended period of time.

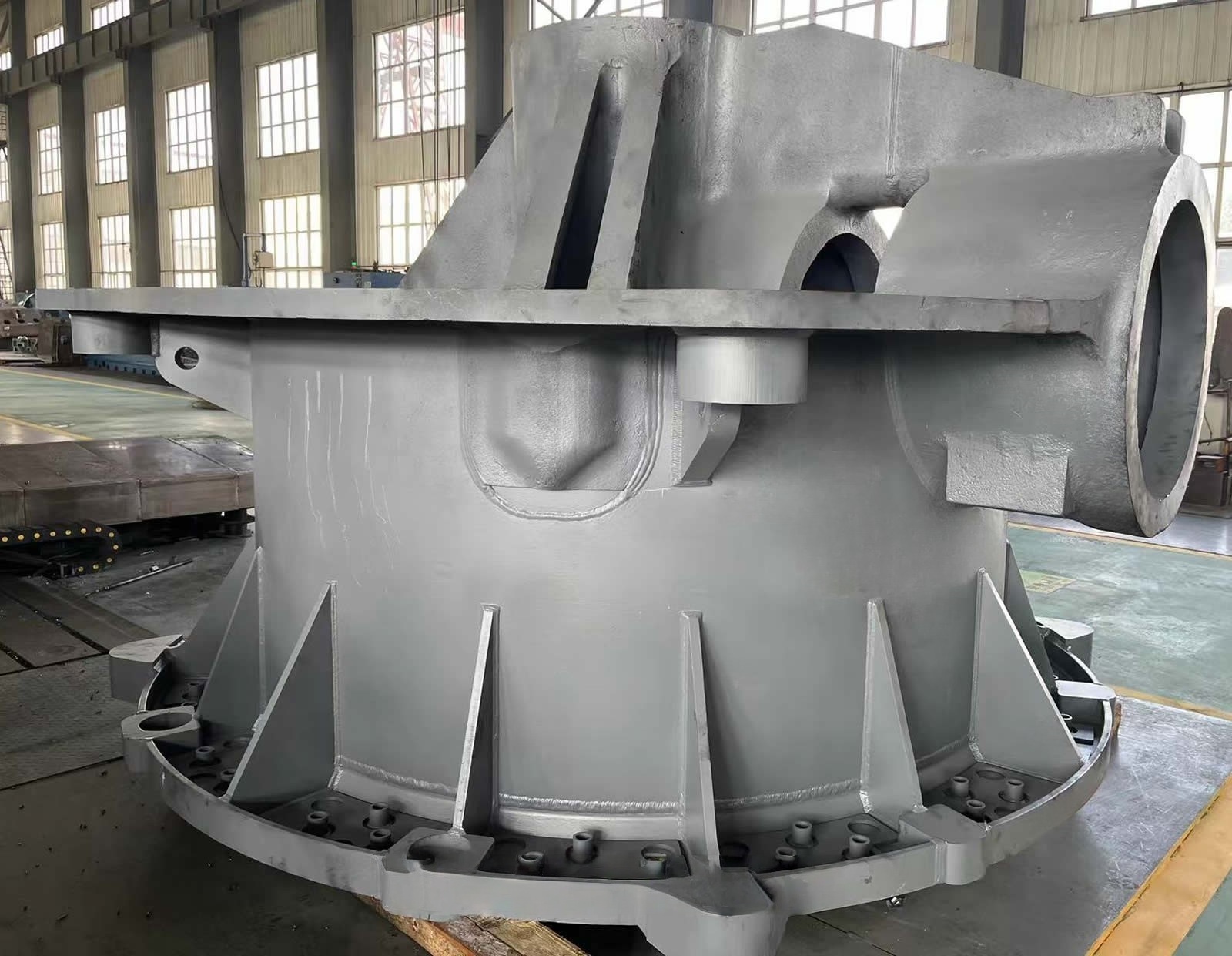

Main frame

Providing structural support to all other components.
